Garage Lighting by Type
Home / Residential Garage (1–3 Cars)
-
Typical Use: Vehicle parking, storage, DIY projects, home gym, hobby space
-
Ceiling Height: 8–10 ft (up to 12 ft in modern builds)
-
Best Fixtures: LED Shop Lights (4-ft or 8-ft), LED Flat Panels for finished ceilings, small UFO High Bays for lofted garages
-
Budget Range: $40–$80 per fixture
Recommended: LED Shop Lights →

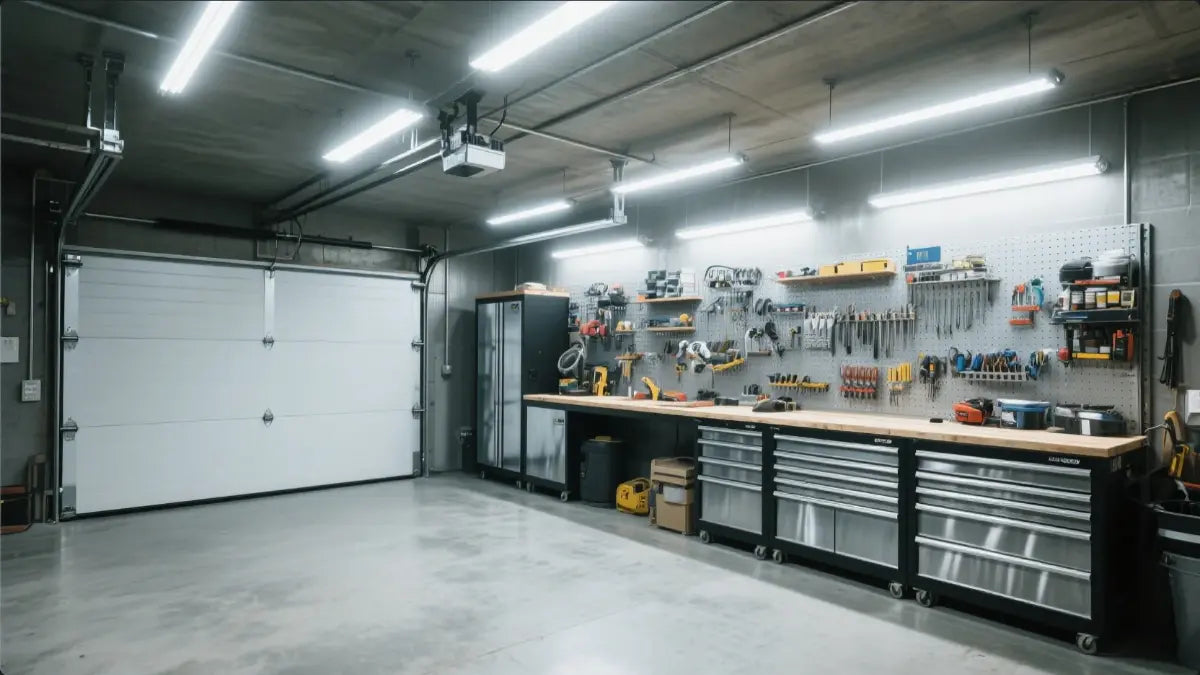

Workshop / Hobby Garage (Woodworking, Mechanical, Crafts)
-
Typical Use: Precision work, woodworking, painting, electronics, hobby fabrication
-
Ceiling Height: 10–14 ft
-
Best Fixtures: High CRI LED Shop Lights (>90 CRI), task lighting over benches, 100W UFO High Bays for taller spaces
-
Key Requirement: CRI 90+ for accurate color rendering (stains, finishes, wiring identification)
Recommended: High-CRI Shop Lights, LED Flat Panel Lights →
Commercial Auto Repair Shop
-
Typical Use: Service bays, diagnostics, brake work, oil changes, mechanical repair
-
Ceiling Height: 12–18 ft (vehicle lift clearance)
-
Best Fixtures: 100W–150W UFO High Bay per service bay + task lighting
-
Key Requirements: IP65 protection, UL listing, high CRI for diagnostic accuracy
Recommended: LED UFO High Bay Lights →
Auto Body / Paint Shop
-
Typical Use: Paint matching, detailing, body repair, spray booths
-
Ceiling Height: 14–20 ft
-
Best Fixtures: CRI 95+ LED fixtures (color matching), vapor-tight fixtures in spray areas, 5000K daylight spectrum
-
Key Requirements: Color accuracy, chemical resistance, hazardous-location compliance in spray booths
Recommended: Vapor Tight Fixtures →, Explosion-Proof Lights →
Truck / Diesel Repair Bay
-
Typical Use: Heavy truck service, diesel repair, fleet maintenance
-
Ceiling Height: 18–28 ft
-
Best Fixtures: 200W–300W UFO High Bays + dock-arm style task lighting
Recommended: 200W–300W UFO High Bays →, LED Dock Lights →
Drive-In Car Wash / Detail Bay
-
Typical Use: Vehicle washing, detailing, wet environments
-
Ceiling Height: 10–14 ft
-
Best Fixtures: Vapor-tight LED fixtures, LED canopy lights at entry/exit
-
Key Requirements: IP65+ wet-location rating, corrosion resistance, vibration resistance
Recommended: Vapor Tight Fixtures →
How Many Garage Lights Do I Need?
Garage lighting design is based on target footcandles (fc), which vary by usage type. Below are industry-standard recommendations based on IES guidance.
| Garage Type |
Target Footcandles |
Notes |
| Residential parking |
20 fc |
Basic safe visibility and storage access |
| Residential workshop |
50 fc |
Workbench-level precision lighting |
| Commercial repair bay |
50 fc |
General repair and service work |
| Diagnostic inspection |
75 fc |
Detect cracks, leaks, fine defects |
| Paint matching / body work |
100+ fc |
Requires CRI 95+ lighting |
| Spray booth interior |
100+ fc |
Must be hazardous-location rated |
Worked Example: 2-Car Home Garage
A typical 2-car garage measures approximately 20 × 22 ft (440 sq ft) with a 9-ft ceiling. For a combined parking and light workshop use case at 50 fc:
Total Lumens = (440 × 50) ÷ (0.5 × 0.85) = 51,765 lumens
A practical configuration would be:
- 2 × 4-ft LED Shop Lights (17,400 lm total)
- 1 × 100W UFO High Bay (14,000 lm)
Total output ≈ 31,400 lumens, which is adequate for residential use where ambient daylight often supplements lighting during garage-door-open conditions. For heavier workshop use, add one additional shop light or upgrade to dual UFO fixtures.
Worked Example: 4-Bay Auto Repair Shop
A 60 × 40 ft commercial garage (2,400 sq ft) with 16-ft ceilings targeting 50 fc:
Total Lumens = (2,400 × 50) ÷ (0.5 × 0.85) = 282,353 lumens
Using 150W UFO High Bays (21,000 lm each):
- Approximately 14 fixtures in a 2 × 7 grid layout
Special Requirements for Commercial Garages
OSHA General Industry Standards
OSHA requires sufficient illumination for safe work conditions. While exact footcandle values are not always specified, IES RP-7 recommends 50 fc for general repair work and 75 fc for diagnostic inspection environments.
EPA Compliance for Body Shops
Body shops must comply with EPA 40 CFR Part 63 ("6H Rule") regarding coating and chemical emissions. Lighting in these areas must resist overspray accumulation and be easy to clean for compliance documentation.
NFPA 30 Flammable Liquid Safety
Areas storing fuels, solvents, and chemicals must follow NFPA 30 guidelines. Spray booths and hazardous zones require Class I Division 2 rated fixtures — standard high bays are not suitable in these areas.
Lift Bay Lighting Design
Vehicle lifts create shadow zones beneath vehicles. Lighting should be positioned to illuminate around lift columns rather than directly above vehicles. Task lighting is recommended for under-vehicle work.
High CRI for Diagnostic Accuracy
Standard LEDs (CRI 80) are sufficient for general visibility. However, paint matching and body repair require CRI 90–95+ to ensure accurate color rendering under controlled lighting conditions.
✅ Brightness (50–500 lux depending on use)
✅ Cool white (4000K–5000K) for clarity
✅ High CRI (≥70) for accurate color recognition
✅ LEDs for longevity & efficiency
✅ Durable, moisture-resistant fixtures (IP65 if needed)
✅ Motion sensors for convenience & security
LED high bay lights are ideal for large industrial garage lighting, especially garages or warehouses with high ceilings. This light has high brightness and a large beam angle, which can effectively cover a large area. In addition to its long life, LED high bay lights are also very energy-efficient, which can reduce maintenance costs. And they are usually dustproof and waterproof, suitable for a variety of harsh environments. Our LED high bay lights mainly include the following two types:
-
UFO Round High Bay Light: UFO round high bay light: This light adopts a round design, efficient heat dissipation, and plug and play. UFO high bay lights are usually very bright and evenly distributed, making them an investment in any smart space.
-
LED Linear High Bay Light: Linear high bay lights are designed with long strips to provide wide light coverage. They can be suspended or surface mounted to provide continuous and even light and reduce shadows.
FAQs About Best Lighting For Garages
It all depends on the intended use of the garage, as well as other factors such as ceiling height, number of square feet of area to be illuminated. Generally speaking, a minimum of 50 lumens per square foot of space is recommended. This means that a 10' x 10' garage would require at least 5,000 lumens of light.
Is installing LED garage lighting difficult?
Best LED garage lights are designed to be easy to install. GGJIA's high bay and linear high bay lights come with a three-prong plug, designed to fit standard 110-277V outlets, making installation as simple as hanging the light and plugging it in. However, if you need to hardwire the connection to the garage's main power supply, we always recommend consulting the installation guide or a professional electrician, as this may vary depending on the specific model and style of the commercial garage lighting.
Measure your garage to determine your true light output needs. The Institute of Lighting Engineering (IES) Lighting Manual recommends:
- 50 lumens per square foot for residential garages
- 300 lumens per square foot for workshop areas
Q: What does 5000 K mean in Good Garage Lighting?
A: As seen on the graph, 5000 kelvin is a nice white but has a slight tint of yellow. People who choose this color are usually trying to get a more natural white light that appears less harsh to the eye.
Q: What is 5700 Kelvin color?
A:5700K lights produce a whiter light, which are perfect for if your drive is mainly going to be in wide open spaces or on long roads and areas were light reflection isn’t going to be an issue, as the whiter colour helps with more defined distance penetration, and can also pick out more details around the edges of the beam in open areas.
