Outdoor Commercial LED Lighting Requirements Guide
Commercial outdoor LED lighting must meet stricter environmental and durability standards than indoor fixtures. Exposure to rain, snow, UV radiation, and temperature extremes requires properly rated housing, sealing, and thermal design. The following specifications define a true commercial-grade outdoor fixture.
1. Ingress Protection (IP Rating)
-
Minimum Requirement: IP65 or higher
-
Dust Protection: Fully dust-tight (IP6X rating)
-
Water Protection: Resistant to water jets from any direction (IPX5 rating)
-
Certification Note: True wet-location fixtures must be listed for UL Wet Location, not only “Damp Location”
Wet-location rating ensures suitability for direct exposure to rain, snow, and washdown conditions, while damp-location ratings are only suitable for covered outdoor environments.
2. Low-Temperature Operating Performance
-
Minimum Requirement: Rated operation down to −22°F (−30°C)
-
Design Consideration: Driver electronics must be tested for cold-start reliability
-
Application Risk: Non-rated residential fixtures may fail below 0°F due to driver instability
3. UV-Resistant Housing Materials
-
Standard Housing: Die-cast aluminum with powder-coated finish
-
Lens Material: UV-stabilized polycarbonate (PC)
-
Performance Requirement: Resistance to yellowing, cracking, and brittleness under long-term sun exposure
Non-UV-stabilized plastics degrade within 2–3 years in outdoor environments, leading to light loss and mechanical failure.
4. Corrosion & Coastal Resistance
-
Testing Standard: ASTM B117 salt spray testing
-
Recommended Rating: 1,000+ hours for industrial or coastal environments
-
Use Cases: Coastal cities, chemical plants, ports, and high-humidity industrial zones
GGJIA Outdoor Commercial Fixtures
GGJIA outdoor LED fixtures are engineered to meet all four commercial-grade requirements, including IP65+ protection, low-temperature operation, UV-resistant construction, and corrosion resistance for harsh environments.
All outdoor products are backed by a 5-year warranty, explicitly covering outdoor installation environments including rain, snow, coastal exposure, and industrial applications.
Commercial Outdoor LED Lighting Standards & Applications
A true commercial outdoor LED fixture must meet environmental, thermal, and durability standards that go beyond indoor lighting requirements. These specifications ensure reliable performance in rain, snow, UV exposure, and corrosive environments while maintaining long service life and safety compliance.
Outdoor Commercial Lighting Requirements
A fixture marked for outdoor commercial use must meet the following four specifications that interior fixtures typically do not:
-
IP65 Minimum Ingress Protection
The first digit (6) indicates dust-tight construction. The second digit (5) indicates resistance to water jets from any direction. For true outdoor use, fixtures should also be listed for UL Wet Location, not just “Damp Location.” Wet-rated fixtures are designed for direct rain and snow exposure, while damp-rated fixtures are not.
-
Low-Temperature Operating Range
Commercial outdoor fixtures should be rated to at least −22°F (−30°C). Many residential-grade fixtures fail in sub-freezing conditions due to driver electronics not being tested for cold-start performance.
-
UV-Resistant Housing Materials
Die-cast aluminum with powder-coated finish is the commercial standard. Polycarbonate (PC) lenses must be UV-stabilized to prevent yellowing and brittleness, which typically occurs in non-rated materials within 2–3 years of sun exposure.
-
Corrosion Resistance
For coastal, industrial, or salt-exposure environments, fixtures should pass ASTM B117 salt-spray testing, typically rated at 1,000+ hours for commercial durability.
GGJIA outdoor LED fixtures are engineered to meet all four requirements and are backed by a 5-year warranty covering full outdoor installation conditions.

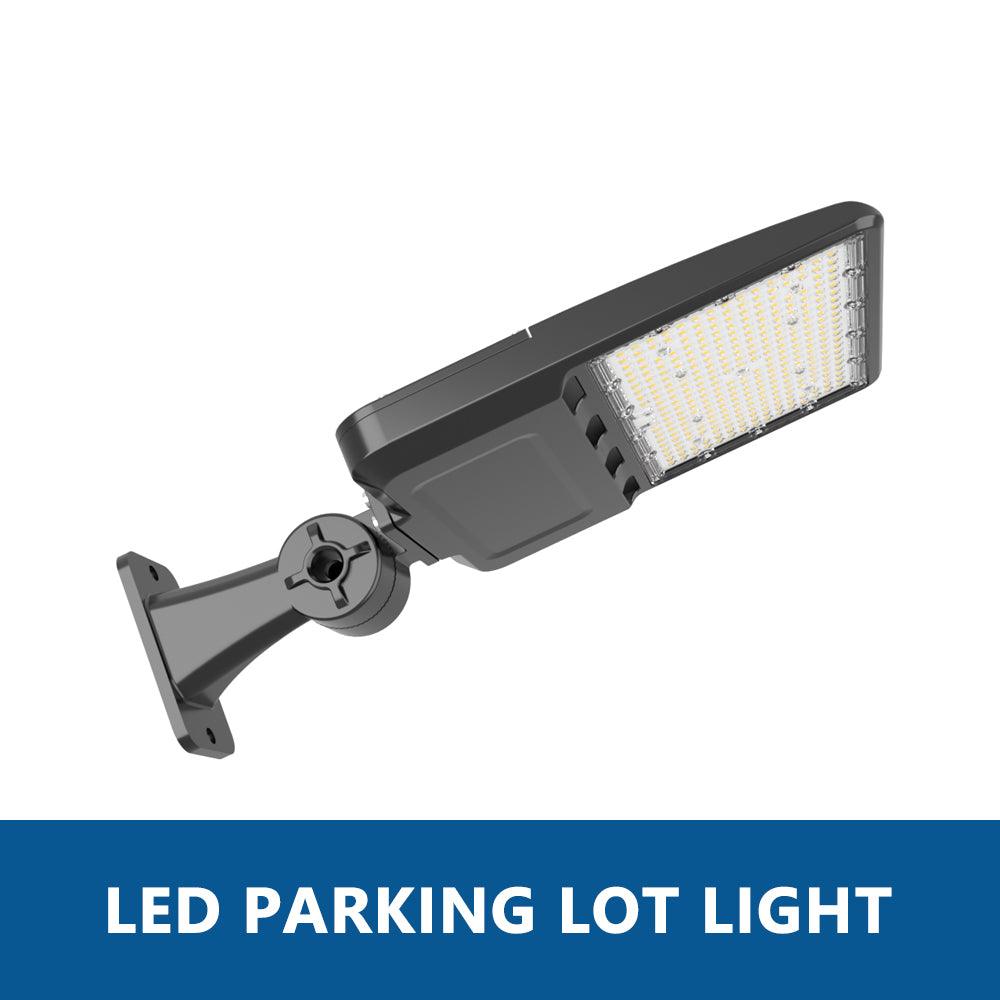

LED Parking Lot Lights (Shoebox Fixtures)
- Pole-mounted area lighting for parking lots, dealerships, schools, stadiums, and multi-family residential properties
- Adjustable arm mount, slip-fitter, and direct-mount options
- 150W–400W output with up to 60,000 lumens
- Optional photocell for dusk-to-dawn operation
Shop Parking Lot Lights →
LED Wall Pack Lights
- Building-mounted security and perimeter lighting
- 30W mini wall packs for walkways and service entrances
- Up to 120W high-output models for facades and loading docks
- Optional photocell and motion sensor configurations
Shop Wall Pack Lights →
LED Canopy Lights
- Recessed and surface-mount fixtures for gas stations and covered structures
- Ideal for drive-thru lanes, loading docks, and parking garage entrances
- Wet-location rated for direct environmental exposure
- 40W–120W with up to 18,000 lumens
Shop Canopy Lights →
LED Stadium & Flood Lights
- High-output lighting for sports fields, freight yards, and large outdoor facilities
- Designed for long-distance beam throw and uniform coverage
- Precision optics reduce light spill and glare
Shop Stadium Flood Lights →
LED Solar Street Lights
- Integrated solar + LED + battery + motion sensor system
- Off-grid solution for remote or utility-free locations
- Ideal for rural roads, perimeter fencing, and agricultural sites
Shop Solar Lights →
LED Full Cutoff Wall & Eave Lights
- Dark-sky compliant fixtures with 0° upward light emission
- Designed for municipalities with light pollution regulations
- Ideal for building perimeters and residential-adjacent commercial zones
Shop Full Cutoff Lights →
Construction String Lights (Outdoor Rated)
- IP65-rated linkable LED string lighting for job sites
- Suitable for temporary outdoor work zones and events
- Rugged construction for industrial environments
Shop Construction String Lights →
Outdoor Commercial Lighting Applications & Compliance Guide
Outdoor commercial lighting design is defined not only by fixture type, but also by pole height, spacing, required illumination levels, and light pollution regulations. The following guide outlines recommended fixtures, footcandle targets, and compliance requirements for major outdoor applications.
Parking Lots (Retail, Multi-Family & Commercial Sites)
-
Recommended Fixtures: Shoebox / Parking Lot LED Lights on 20–30 ft poles, supplemented by wall pack lighting on surrounding buildings
-
Target Illumination: 1–2 fc minimum safety lighting; 2–5 fc for retail and high-traffic areas; 5+ fc for dealerships and high-security zones
-
Uniformity Target: 4:1 max-to-min ratio for safety applications; 3:1 for retail environments
-
Key Requirement: IES BUG rating compliance (Backlight, Uplight, Glare control) as required by many jurisdictions
Building Exteriors & Security Lighting
-
Recommended Fixtures: LED Wall Packs (30W–120W), Full Cutoff Wall Lights, Motion Sensor Flood Lights
-
Target Illumination: 1 fc for walkways; 5 fc for entrances; 10 fc for loading bays
-
Key Requirements: Photocell or motion sensor controls for energy efficiency; vandal-resistant lenses for ground-level installations
Gas Stations, Drive-Thrus & Covered Canopies
-
Recommended Fixtures: LED Canopy Lights (40W–120W), supplementary wall packs on dispenser areas
-
Target Illumination: 50–100 fc under canopy (IES RP-33 recommended for safety and surveillance clarity)
-
Key Requirements: Wet-location rating, UL listing for canopy use, and vibration resistance for vehicle-heavy environments
Sports Fields, Athletic Facilities & Freight Yards
-
Recommended Fixtures: LED Stadium Flood Lights with precision cutoff optics
-
Target Illumination: 30 fc recreational use; 50–100 fc competition; 5–10 fc freight yards
-
Key Requirements: Glare control (IES BUG B3-U0 or better); uniformity ratio under 2:1 for playing surfaces
Off-Grid & Remote Locations
-
Recommended Fixtures: Solar LED Street Lights with integrated battery and motion sensor
-
Target Illumination: 1–3 fc walkway lighting (site-dependent)
-
Key Requirements: Battery sizing based on local winter daylight conditions; photocell + motion sensor for energy optimization
Light Pollution & IES BUG Compliance Guide
Many U.S. and Canadian jurisdictions regulate outdoor lighting to reduce glare, skyglow, and light trespass. The most widely adopted standard is the IES BUG rating system, which evaluates fixtures across three categories:
-
Backlight (B): light emitted behind the fixture
-
Uplight (U): light emitted above the horizontal plane into the sky
-
Glare (G): high-angle light visible to drivers and pedestrians
For dark-sky compliance, most ordinances require U0 (zero uplight), meaning full cutoff optics with no upward light emission. GGJIA full cutoff wall lights and shoebox parking lot fixtures with house-side shielding are designed to meet U0 requirements.
Cities and regions with active lighting ordinances include Flagstaff (AZ), Tucson (AZ), Pittsburgh (PA), San Diego (CA), Toronto (ON), and certain regulated zones in Hawaii. Always verify requirements with the local Authority Having Jurisdiction (AHJ) before specifying outdoor fixtures.
What is Commercial Lighting?
Commercial lighting is lighting that is used in offices, stores, garage lights, and commercial spaces for use inside. Commercial lighting can be used for both indoor and outdoor lighting.
Where can Industrial Outdoor Lighting be Installed?
Designed to provide safe and efficient lighting, commercial lighting is suitable for almost any location, such as the high bay lights you see in industrial locations such as warehouses; panel lights in offices or office buildings; and parking lots bulbs for improved visibility.
What are the Different Kinds of Commercial Lighting?
Commercial light fixtures vary in lamp type, function, style, size, and luminosity. Common Commercial Lights can be grouped into the following categories:
-
LED Flood Lights
Outdoor flood lights are specially designed to provide broad, even lighting that can cover large areas, and are typically used for outdoor lighting, terraces, building facades, plazas, and other places where a large area needs to be illuminated.
-
Parking Lot Lights
Made from a heavy-duty, sturdy housing, the parking lot light features a high-efficiency chip that provides wide lighting coverage. Ensures the safety of pedestrians and vehicles.
-
Wall Pack Lights
Outdoor Wall pack lights are usually wall-mounted and can also be used as porch lights. Enhances the beauty of building facades and can also be used to illuminate pedestrian streets for pedestrian safety.
Indoor Lighting
-
Hexagon Garage Lights
Stylish and multifunctional hexagonal garage light allows you to DIY multiple combo packs to freely piece together different hexagonal lights as it has a stylish and cool hexagonal design. Perfect for garages, gyms, barber stores, studios, and more.
-
LED Panel Lights
Choose from standard 2x4 ceiling panels to 2x2 square ceiling panels to reduce wattage consumption in commercial applications. Ideal for retail stores, offices, showrooms, and other commercial applications.
-
High Bay LED Lights
Our high bay LED lights include UFO high bay lights and linear high bay lights. They can emit strong and uniform light, are durable and easy to install, and are the first choice for lighting large spaces with high ceilings, such as warehouses, workshops, factories, etc.
-
Canopy Lights
LED Canopy lights are durable due to their compact design, fade and abrasion resistance, and can withstand humid environments and harsh weather conditions, making them suitable for gas stations, underground passageways, and other indoor or outdoor spaces.
