Compare 2x2 and 2x4 LED troffer fixtures by ceiling fit, light appearance and the control setup. The listed fixtures offer 5CCT selection and dimming; choose the exact power settings and mounting parts for the room.
Compare the 2x2 and 2x4 fixture outlines with your ceiling opening before ordering. The product drawings make the body dimensions easier to compare; installation access and support still need to be checked separately.
Check the opening, overhead clearance, lift-in access and support arrangement. Choose any required suspension or surface-mount parts for the exact fixture, then confirm the supply and dimming controls with the installer.
| Decision | Available features | Selection check |
|---|---|---|
| Fixture size | 2x2 and 2x4 complete LED troffers. | Compare the actual product drawings with the opening and the lift-in access. |
| Color and controls | 5CCT selection and dimming on the listed models. | Choose the light appearance, then confirm the selected driver/control arrangement. |
| Mounting scope | Recessed fit or separately required mounting parts. | Confirm compatible suspension or surface-mount hardware and what is included. |
For a free photometric layout or project quote, send a ceiling photo, room dimensions, opening dimensions, existing control details and fixture quantity.

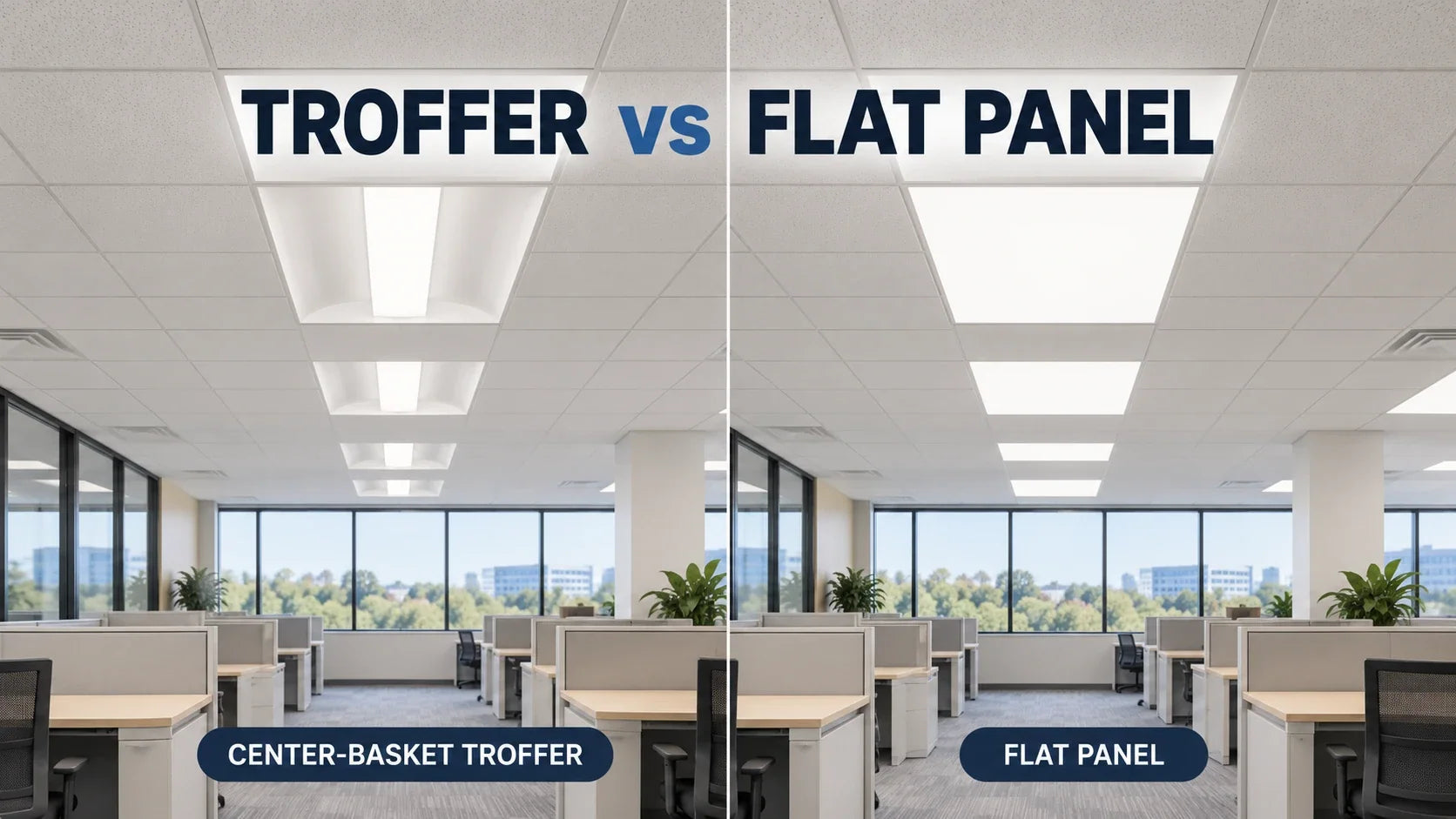

Compare fixture appearance, ceiling clearance, controls and installation cost before choosing your ceiling-light format.
Read the article →Excludes Alaska and Hawaii. Confirm delivery timing for your project.
Shipping informationKeep the original packaging and contact support before returning an order.
Return conditionsQuestions about your selection? sales@ggjia-led.com
Choose the nominal size that matches the ceiling format, then compare the selected fixture’s actual dimensions with the opening, support arrangement and space above the tiles. The 2x2 and 2x4 models have different bodies; neither size guarantees that it can be lifted into every ceiling. Check the installation access and wiring space as well as the outline shown in the dimension drawing. Send a ceiling photo and measured opening if you need help choosing.
These are complete LED troffer fixtures, not universal retrofit kits for an existing fluorescent housing. Replacing an old fixture involves checking its removal, the ceiling support, supply connection and controls. A matching nominal 2x2 or 2x4 size does not establish electrical or mounting compatibility with the old housing. If you need to retain that housing, ask for a retrofit product specifically approved for it rather than treating this complete fixture as a lamp replacement.
No. The current 2x2 and 2x4 product pages state that suspension and surface-mount kits are not included. Choose a mounting method first, then request the compatible kit and a parts list for the exact fixture. Do not assume that a flat-panel frame or a kit for another nominally similar light will fit this troffer. Confirm both fixture and accessory availability before ordering the project quantity.
The listed troffers have selectable wattage and CCT switches, plus 0–10V dimming. Wattage selects a listed power/output setting; CCT selects the white color. These setup switches are different from day-to-day dimming. Reuse an existing dimmer only after confirming driver and control compatibility, minimum light level and full-off behavior. Request the exact model’s setting list and installation instructions before deciding which controls to retain.
Compare the same fixture size, selected pack quantity and total number of fixtures required. Divide the pack price by its listed fixture quantity to compare unit cost, then add the mounting kits, controls and installation scope needed for your ceiling. The current models offer 2 Pack, 4 Pack and 30 Pack choices; check the selected option rather than comparing headline prices from different packs. Ask for a project quote if the required quantity does not match the listed combinations.
