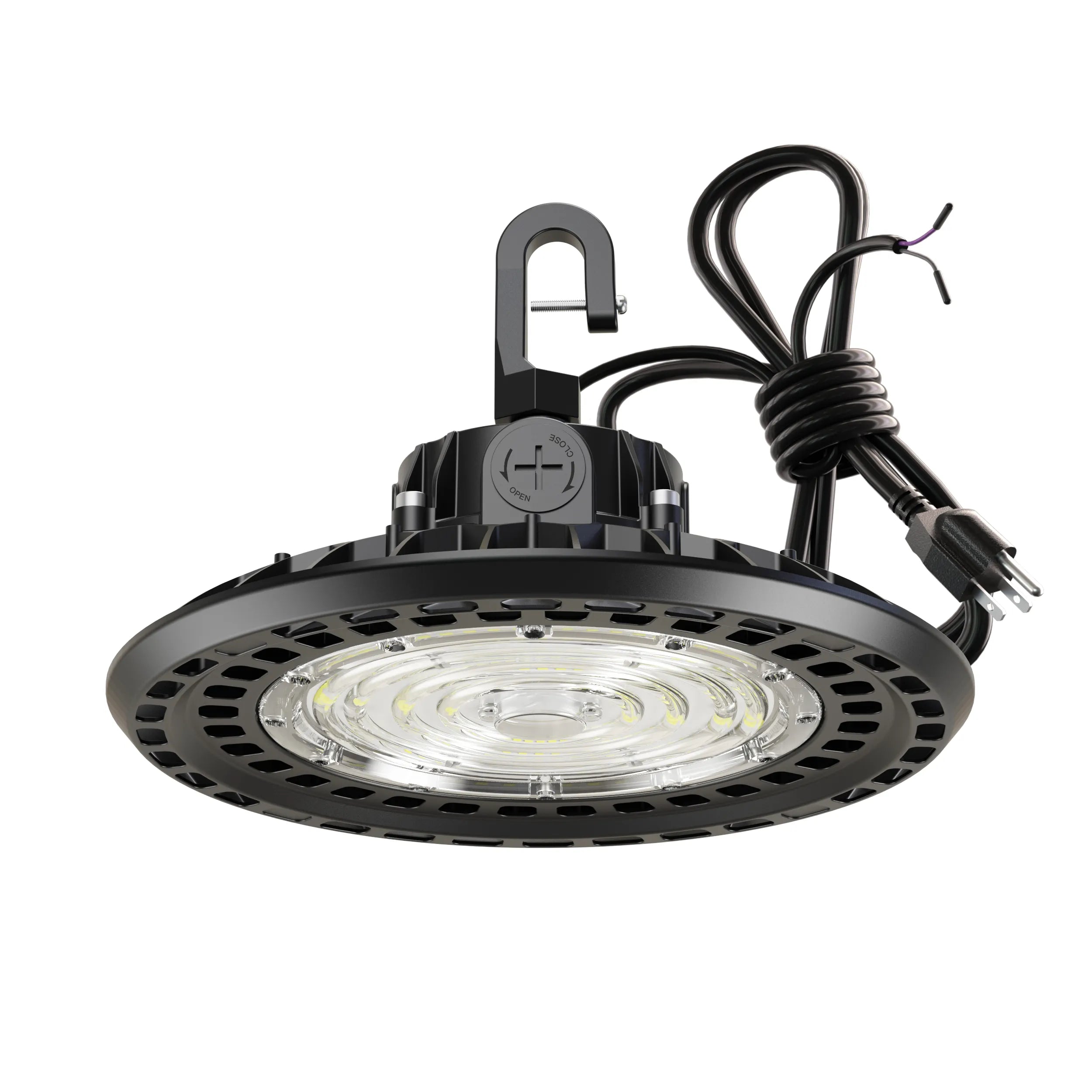

GGJIA LED UFO High Bay Lights HB Black Series 0-10V Dimmable
- $49.99
$59.99- $49.99
- Unit price
- per
5% OFF Automatically Applied On Carts Over $299 - 👉Learn More
💡Summer Flash Sale 10% OFF
Discount code: SUM10
Copied
Size:
Watt Guide
Subtotal:
$49.99
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free shipping from local warehouses in the US and Canada.
Free Returns
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
5 Years Warranty
Warranty duration varies by product. See warranty details for specific terms.
Pack
May ship in different packs than selected. Total quantity guaranteed.
Before
After
Applications
• Auto Dealerships
• Manufacturing
• Commercial
• Storage Facilities
• Gymnasiums
• Warehouses
• Industrial
• Wattage:
150-300W
• Max Delivered Lumens:
22500-45000lm
• Operating Temperature Range:
-31°F to 122°F (-35°C to 50°C)
• Input Power:
Selectable 100% - 80% - 60%
• Estimated L70 Lifetime @ 25˚C (77˚F):
>70000
• Input Voltage:
AC100-277V
• Power Factor:
>0.9 at full load
• Dimmable:
0-10V
• Total Harmonic Distortion:
<20% at full load
• 150 LPW
• Waterproof Rating:
IP65
• CRI:
≥ 70
• Limited Warranty:
5-Year
• Color Temperature (CCT):
5000k
• Beam Angle:
120°
• Impact Rating:
IK08
• Housing Material:
Die-Cast Aluminum & Black Powder-Coated Finish
• Lens Material:
UV-Stabilized Polycarbonate
• Mounting Options:
Hook & Chain & Surface Mount & 3/8\ NPT Pole Adapter
• Power Cord:
6 ft U.S. 3-Prong (NEMA 5-15P Plug)
Document
User Guide
📝High Bay Light Installation Instructions 📝Practical Guide for Installing and Maintaining LED High Bay Lights 📝The Complete Buyer's Guide (100W to 400W) 📝What's Waterproof IP65? 📝What's 120° Beam Angle? 📝What's Led Shop Lights Dimmable? 📝Why Warehouse Lighting Design Matters?
❮
❯
Description
x
Built for Continuous Commercial Operation
Engineered for demanding commercial environments and extended operating schedules. The LED chips and driver are rated for an L70 lifespan exceeding 50,000 hours. At 12 hours of daily operation, this equates to more than 11 years of useful service life. Backed by a comprehensive 5-year manufacturer warranty covering both the driver and LED assembly.
0-10V Dimmable for Energy Optimization
Integrated 0-10V dimming compatibility supports standard low-voltage dimmers and commercial building management systems. Pair with a 0-10V dimmer switch or PIR motion sensor to achieve an additional 30–60% reduction in energy consumption beyond the savings already provided by LED technology.
Wet-Location Rated, Built for Real Environments
IP65-rated construction provides complete protection against dust ingress and resistance to water jets. Designed to operate reliably in ambient temperatures from −22°F to 122°F, making it suitable for warehouses, manufacturing facilities, cold storage rooms and covered outdoor installations.
Installation Steps
Step 1 — Determine Mounting Height and Fixture Spacing
For ceilings between 15 and 22 ft, space fixtures approximately 18–25 ft apart. For project-specific calculations, use our Lighting Calculator.
Step 2 — Install Mounting Hardware
Select the mounting method that best suits the application: hook mounting with chain or aircraft cable, surface mounting, or 3/8" NPT pendant mounting. Hook installation is generally the fastest retrofit solution, while surface mounting provides a cleaner permanent installation.
Step 3 — Test Fixture Operation
Connect the factory-installed 6-ft power cord to a standard 120V outlet to verify operation before final installation. The universal-voltage driver automatically accepts any input voltage from 100V–277V.
Step 4 — Hardwire for Permanent Installation
For permanent installations, remove the plug, route the power cord through approved conduit or junction hardware, and connect to a 100-277V branch circuit in accordance with NEC Article 410. Installation should be performed by a qualified electrician to ensure code compliance and preserve warranty coverage.
Step 5 — Connect Optional 0-10V Dimming Controls
To enable dimming, connect the violet (+) and gray (−) low-voltage control leads to a compatible 0-10V dimmer, occupancy sensor or building management system.
Compatible accessory: 0-10V Dimmer Switch →
Key Features
Replace 600W Metal Halide With 150W
22,500 lumens at 150W delivers an impressive 150 LM/W efficacy, placing this fixture among the highest-performing models in our UFO high bay lineup. It directly replaces traditional 400W–600W metal halide fixtures while reducing energy consumption by up to 75% and maintaining equal or greater light output.
DLC Premium Qualified for Maximum Utility Rebates
DLC Premium certified and listed on the DesignLights Consortium Qualified Products List. Eligible for utility rebate programs throughout the United States and Canada, with typical rebate values ranging from $50–$200 per fixture depending on local utility incentives. DLC Product ID is included on every invoice for rebate processing.
Plug-and-Play for Testing, Hardwire-Ready for Permanent Installation
Each fixture includes a factory-installed 6-ft U.S. 3-prong power cord for quick testing and temporary deployment. For permanent commercial installation, the plug can be removed and the fixture hardwired to any 100-277V branch circuit in accordance with NEC requirements.
Best Applications
This 150W UFO LED High Bay is optimized for mounting heights of 15–22 ft and is ideal for the following applications:
- Warehouses & Distribution Centers — Covers approximately 2,100 sq ft per fixture at 10 fc storage illumination or 1,400 sq ft at 15 fc picking illumination.
- Manufacturing Plants — Provides suitable illumination for general assembly operations targeting 30 fc at typical 18-ft mounting heights.
- Auto Dealership Service Bays — High-CRI versions available upon request for paint inspection and color-critical work.
- Gymnasiums & Sports Facilities — IK08 impact rating offers protection from incidental ball strikes. For competitive sports facilities, specify a gym-rated lens package.
- Workshops & Automotive Garages — A single fixture can adequately illuminate a typical 30 × 40 ft workshop with high ceilings.
- Retail Backrooms & Storage Areas — DLC Premium certification helps maximize available utility rebates for retail retrofit projects.
Frequently asked questions
-
How does this compare to GGJIA's White Series 150W?
The HB Black Series is a **fixed-wattage commercial fixture** designed for permanent installation where a specific 150W output is required. The White Series is an **adjustable-wattage variant** with 90W/120W/150W selectable on-site. Choose HB Black if your design specifies 150W; choose White Series if you want flexibility to dial in the right output during installation.
-
Does this fixture qualify for utility rebates?
Yes. It's DLC Premium qualified, eligible for rebates in all major U.S. utility programs (ConEd, PG&E, FPL, Eversource and most municipal utilities). The DLC Product ID is printed on every invoice. Typical rebate is $50–$200 per fixture. Email support@ggjia-led.com with your zip code for utility-specific rebate amounts.
-
What replaces 400W metal halide?
This 150W LED produces 22,500 lumens vs a typical 400W metal halide HID producing 30,000 initial lumens (degrading to ~21,000 lumens after 5,000 hours). At 5 years of operation, the LED actually produces more usable light than an aging HID at less than half the wattage. For 400W HID retrofit, this 150W LED is a direct replacement.
-
Does it work in cold storage / freezer environments?
Yes. Operating temperature range is −22°F to 122°F. The fixture starts and operates without flicker in freezer applications (below 0°F). For cold storage, choose hook or chain mounting for easy access during maintenance.
-
How is this installed in a permanent commercial application?
The 6-ft 3-prong plug is intended for tool-free testing only. For permanent installation, cut the plug, route the SO-cord through conduit, and connect to a 100-277V branch circuit. The driver accepts any voltage in this range. A licensed electrician should perform permanent installation per NEC Article 410 and local codes.
-
Can I daisy-chain multiple fixtures from one outlet?
For temporary plug-and-cord installations, the 5-15P plug supports daisy-chaining via outlet adapters or extension cords. For permanent commercial installations, each fixture is on its own branch (or hardwired in series) per the electrical plan. The driver does not have an integrated pass-through outlet.
-
How long is the lead time?
For 1–9 unit orders: ships within 1–3 business days from our Spokane, WA fulfillment point. For 10+ units (wholesale tier pricing), in-stock SKUs ship within 3 business days. For project orders of 100+ units that may require fresh production, lead time is 2–4 weeks. Contact sales@ggjia-led.com for project quotes.
-
Is the dimming circuit compatible with all 0-10V controllers?
Yes. The 0-10V circuit follows the standard 0-10V dimming protocol used by Crestron, Lutron, ABB, Wattstopper and most other commercial dimming controllers. Compatible with the GGJIA 0-10V Dimmer Switch or any third-party 0-10V controller.
