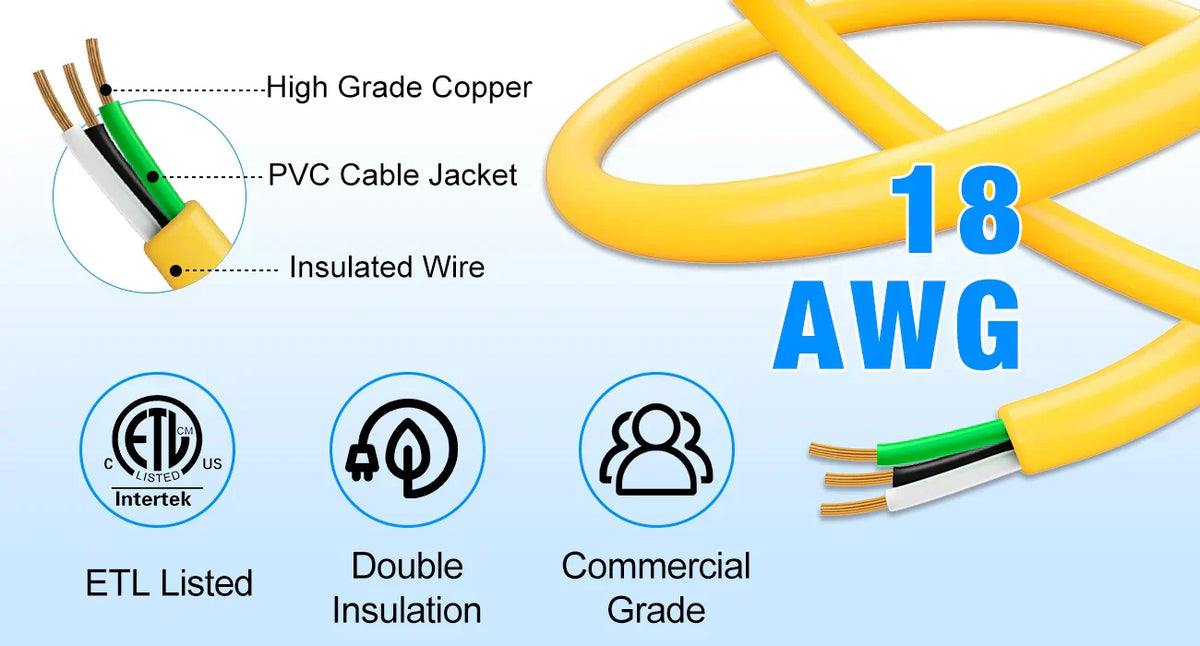

What is AWG?

AWG, also known as the American Wire Gauge, is a standard system used in North America for measuring the diameter of electrical wires. The higher the AWG number, the thinner the wire; the lower the number, the thicker the wire. This is crucial for electrical safety and performance as the thickness of the wire directly affects its current-carrying capacity, resistance, and signal quality. Thicker wires can handle more power, while thinner wires offer better flexibility.

Key features of AWG:

• Inverse relationship: Higher AWG numbers = Smaller wire diameter (for example, 24 AWG is thinner than 12 AWG).

• Logarithmic scale: This is a stepped, logarithmic scale, meaning each step (for instance, from 20 AWG to 19 AWG) has a constant mathematical relationship in terms of cross-sectional area.

• Applications: Used in electronic devices, power cables, and Ethernet (such as Cat5e/Cat6) for solid non-magnetic wires.

• Importance: Correct selection of AWG can prevent overheating, fire hazards (using too thin wires to carry excessive current), and ensure the integrity of signals over long distances.

The significance lies in

• Power and Heat: Thicker wires (with smaller wire numbers) have lower resistance, can carry more current, and generate less heat, thus providing higher safety for larger power loads (such as power supply for Ethernet) when used.

• Signal Quality: Thicker wires have lower resistance, meaning less signal loss over longer transmission distances, which is crucial for high-speed data transmission.

• Flexibility: Thinner wires (with larger wire numbers) are more flexible and are ideal for compact bending and wiring operations.
