Solving the 4 Core Cost Challenges of Industrial Lighting with a Single IP65 LED Fixture
The Real Cost of Industrial Lighting (Problem Agitation)
For many facilities, lighting is viewed as a fixed overhead. This section reveals the true, often underestimated, total cost of ownership of outdated systems.
Energy Consumption Analysis (The Silent Budget Drain)
While the switch from HID to LED is known to save energy, the scale is staggering. A typical 250W metal halide fixture, often used in warehouses, may consume over 3,000 kWh annually when run 24/7. The G GJIA fixture, at its maximum 60W setting, uses just 525 kWh for the same period—an immediate83% reductionin energy draw for comparable light output. Across hundreds of fixtures, this translates to tens of thousands in annual savings.
Maintenance & Replacement Hidden Costs
The cost isn’t just the bulb. Consider the labor for a forklift and two technicians to safely replace a high-bay fixture, production slowdowns in the area, and disposal fees for hazardous materials in some legacy lamps. With a rated lifespan exceeding 50,000 hours (vs. 10,000-15,000 for many HIDs), the G GJIA fixture eliminates 3-5 full replacement cycles, freeing your maintenance team for critical tasks.
Safety & Compliance Risks
Inadequate lighting in areas like loading docks, walk-in coolers, or wash-down spaces directly increases slip, trip, and fall risks. Poor light quality (flicker, glare) can cause eye strain and headaches. The G GJIA’s IP65 rating ensures reliable operation where water, dust, and chemicals are present, mitigating environmental risks, while its flicker-free driver supports a safer, more comfortable visual environment, helping meet OSHA 1910 Subpart S and other standards.
Technical Deep Dive: What Makes Industrial LEDs Different
Not all LEDs are created equal. Industrial-grade fixtures like the G GJIA are engineered for endurance and performance where others fail.
Photometrics Explained: Lumens, Lux, and Efficacy
- Lumens (8700 lm):The total visible light emitted. This high output ensures the fixture can replace much higher-wattage traditional sources.
- Lux:Illuminance on a surface. Uniformity is key. The fixture’s optics are designed to distribute this light evenly, eliminating dark spots that plague cheap fixtures.
- Efficacy (up to 145 lm/W):Lumens per watt. This metric of efficiency is where true savings are born. Higher efficacy means more light for less power.
IP Ratings Decoded: What IP65 Really Means for Your Facility
IP (Ingress Protection) ratings are non-negotiable for industrial use.IP65breaks down as:
- 6:Complete protection against dust ingress (dust-tight).
-
5:Protection against low-pressure water jets from any direction.
This means the fixture can withstand hose-downs in food processing, humidity in cold storage, and dust in warehouses—ensuring longevity where standard fixtures corrode or short-circuit.
Thermal Management: The Key to 50,000+ Hour Lifespan
LEDs degrade with heat. The G GJIA’srugged polycarbonate housingserves a dual purpose: impact resistance and thermal management. PC material efficiently dissipates heat away from the LED chip and driver, maintaining optimal operating temperature. This is the primary engineering factor behind its long, predictable lifespan and sustained light output.
G GJIA 60W Vapor Tight Light: Engineering Analysis (The Solution)
This is where the product’s design directly confronts the problems outlined above.
Precision Optics & Uniformity
The fixture utilizes a high-transmissionpolycarbonate diffuserto soften and evenly spread the intense LED light. This eliminates harsh glare and “hot spots,” providing consistent illuminance across the work plane, which is critical for task accuracy and visual comfort in long shifts.
Robust Construction for Harsh Environments
Beyond the IP65 sealing, thestainless steel mounting clipsresist corrosion, and the all-PC construction is immune to rust. This makes it ideal for corrosive environments like chemical plants, marine applications, or facilities using cleaning agents. Its durability translates directly to lower lifetime costs.
Smart Control Compatibility & Flexibility
The fixture is prepared for the future. It offers compatibility with0-10V dimmingand can be specified with options likeemergency battery backupormotion/daylight sensors. This future-proofs your installation, allowing for integration into building management systems for additional layers of energy savings.
Head-to-Head Comparison: G GJIA vs. Traditional Alternatives
| Feature | G GJIA 60W LED Vapor Tight Light | Traditional 4FT Fluorescent Vapor Tight | 250W Metal Halide High Bay |
|---|---|---|---|
| Power Consumption | 30W / 40W / 50W / 60W (Selectable) | ~70W (T8) to ~90W (T5HO) | ~290W (system) |
| Avg. Lifespan | >50,000 hours | 20,000 - 30,000 hours | 10,000 - 15,000 hours |
| Start-Up Time | Instant On | 1-3 seconds (can be slower in cold) | 5-15 minute warm-up |
| Durability (Env.) | IP65, Rust-Proof PC | IP65 (but metal housing can corrode) | Typically IP54 or less |
| Light Control | 5 CCT Selectable, Dimming Ready | Single CCT, limited dimming | Single CCT, not dimmable |
| Maintenance | Minimal (5+ year intervals) | Moderate (annual group relamping) | High (frequent bulb/ballast changes) |
| Total Cost of Ownership | LOWEST | Medium | Highest |
ROI Calculation: The Numbers Don’t Lie
Interactive Formula:Annual Savings = (Current Fixture Wattage - LED Wattage) * Hours of Operation * Energy Rate * Number of Fixtures
Case Study Example:
- Facility:Mid-sized automotive parts warehouse.
- Previous Setup:100 x 250W Metal Halide fixtures.
- New Setup:100 x G GJIA fixtures @ 60W setting (providing equivalent/better light).
- Operation:18 hours/day, 365 days/year.
- Energy Rate:$0.12/kWh.
Calculation:
- Energy Savings:(290W - 60W) = 230W saved per fixture. 230W * 18 hrs * 365 days =1,511 kWh/fixture/year.
- Cost Savings:1,511 kWh * $0.12 =$181.32/fixture/year.
- Total Annual Savings:$181.32 * 100 fixtures =$18,132.
- Payback Period:(Assuming a fixture cost of ~$150 installed): $15,000 investment / $18,132 annual savings =< 10 months.
“After retrofitting our cold storage with 50 G GJIA lights, our monthly energy bill for lighting dropped by 68%. The uniform light has also improved safety inspections.” – Facility Manager, Food Processing Plant.
Implementation Guide & Best Practices
Retrofit vs. New Installation
- Retrofit:Often the fastest path. The G GJIA’s versatile mounting (surface/suspended) and standard 4FT length make it a direct replacement for many existing fluorescent vapor tight or HID fixtures. Ensure electrical compatibility (voltage, ballast bypass for fluorescents).
- New Installation:Allows for optimized layout from the start. Use photometric planning tools to determine optimal mounting height and spacing for perfect uniformity.
Lighting Layout Optimization
Don’t just replace one-for-one. Use the higher efficacy and better distribution to potentiallyreduce the number of fixtureswhile maintaining or improving light levels. Consider task areas versus general aisles, potentially using the field-selectable wattage to tailor output to each zone.
Maintenance Schedule
While minimal, proactive care extends life. Recommend an annual visual inspection of seals and housing integrity, especially in high-pressure washdown areas. Keep a record of installation dates to track against the 5-year warranty.
Frequently Asked Questions (FAQ)
Can I really adjust the wattage and color temperature myself on-site?

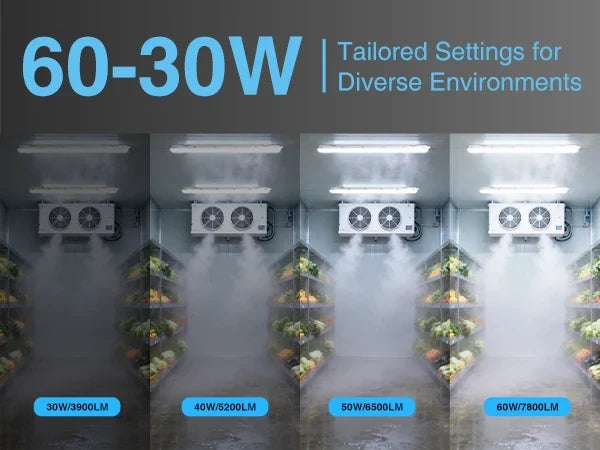

Yes. The G GJIA H2515 model features internal switches that allow authorized personnel to select from 30W, 40W, 50W, or 60W output and choose a color temperature (3000K, 4000K, 5000K, 5700K, 6500K) to match the application need—all without changing hardware.Is the IP65 rating sufficient for direct hose-down in a food plant?
Yes, an IP65 rating is specifically designed to protect against low-pressure water jets from all directions, making it suitable for wash-down areas. For direct, high-pressure spray, an IP66 or IP69K rating might be considered, but IP65 covers the vast majority of industrial wet environments.What is the actual expected lifespan, and what does it depend on?
The 50,000+ hour rating is based on standard operating conditions (typically 25°C ambient). Lifespan can be influenced by extreme ambient temperatures (very hot or cold) and drive current. Proper thermal management via the fixture’s design is key to achieving this lifespan.Does it work with motion sensors and emergency backup systems?
Absolutely. The fixture is compatible with standard 0-10V dimming controls for integration with sensors. It can also be ordered with an integrated emergency battery backup unit, providing mandated egress lighting during a power failure.What does the 5-year warranty cover?
The warranty typically covers defects in materials and workmanship, including LED driver failure and significant lumen depreciation below a stated threshold (often L70/B50). Always review the specific manufacturer’s warranty terms.
