A Practical Guide to Daisy Chaining LED Shop Lights
How Many LED Troffer Lights Can Be Connected in Series?
Series connection of LED lights is a common installation method, but it must be implemented within strict electrical and safety boundaries. An unlimited number of fixtures cannot be daisy-chained; the maximum permissible quantity is determined by the rated current capacity of the first fixture’s internal wiring and the ampacity of the interconnecting conductors. Exceeding these limits poses risks including thermal degradation, insulation failure, and fire hazard.
Consult Manufacturer Specifications
Each LED troffer model has clearly defined daisy-chain limits specified in its technical documentation or user manual. For standard 4-foot (120 cm) LED troffers, the typical maximum is 4–8 units per chain. This restriction exists primarily to prevent overheating and potential melting of the internal wiring in the upstream (first) fixture—since it supplies current to all downstream units in the series.
Electrical Basis for the Limit
The theoretical upper bound may be estimated using Ohm’s law and load calculations: divide the rated current rating of the input socket on the first fixture (commonly ≤5 A) by the operating current draw per fixture (e.g., 0.5 A per unit), yielding a nominal capacity of up to 10 units. However, such calculation alone does not supersede manufacturer-imposed limits. Operating beyond the specified maximum voids product warranty and compromises UL/ETL safety certification compliance—even if the arithmetic appears acceptable. Safety margins, voltage drop across extended conductor runs, and cumulative thermal effects necessitate adherence to published ratings.
Best Practices for Safe Series Installation
While straightforward in concept, proper execution ensures long-term reliability and code compliance.
Step 1: Layout Planning
Accurately measure ceiling dimensions and determine the location of the primary (supply-connected) fixture. Ensure spacing between fixtures and required cable lengths are compatible with both mechanical support requirements and electrical derating guidelines.
Step 2: Mechanical Mounting
Secure all mounting hardware—including suspension hangers or recessed clips—prior to fixture installation. Mount each troffer firmly using designated structural supports. Under no circumstances should power cords bear fixture weight.
Step 3: Electrical Interconnection
Connect the primary fixture to the branch circuit supply. Then sequentially link the output terminal of each upstream fixture to the input terminal of the next downstream unit. Secure all interconnecting cables using listed wire management devices (e.g., UL-listed cable ties or J-box-mounted strain reliefs) to prevent sagging, abrasion, or accidental disconnection.
Step 4: Functional Verification
Energize the circuit and verify immediate, uniform illumination across all units. Flickering—particularly at the final fixture—may indicate excessive voltage drop, undersized conductors, or a loose connection requiring inspection and re-termination.
Daisy-Chaining vs. Hardwired Installation: Selection Criteria
The choice between plug-and-play daisy-chaining and permanent hardwired connections depends on application context, occupancy type, and longevity requirements.
Daisy-chaining offers rapid deployment without specialized electrical expertise. It is ideal for leased commercial spaces, pop-up retail environments, or temporary installations where wall modifications are prohibited. Fixture replacement is simplified—simply unplug and swap. Layout flexibility also facilitates future reconfiguration.

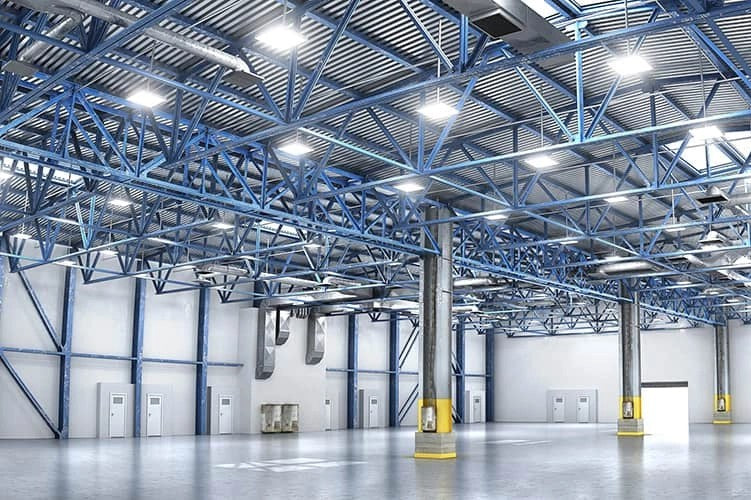

Hardwired installation involves direct termination of fixture leads into an approved junction box connected to the building’s branch circuit. This method conceals all conductors, delivers a clean aesthetic, and eliminates reliance on proprietary connectors or internal fixture wiring limits. It supports higher fixture counts per circuit and is strongly recommended for permanent, high-bay, or large-scale commercial applications (e.g., warehouses, supermarkets, or distribution centers). For new construction or full-fit-out projects, hardwiring represents the superior long-term solution in terms of safety, scalability, and regulatory compliance.
Frequently Asked Questions (FAQs)
Q: Can 4-foot and 8-foot LED troffers be mixed in a single daisy chain?
A: Yes—provided both models belong to the same certified product family, share identical input voltage specifications (e.g., 120–277 V AC), and are explicitly approved by the manufacturer for interoperable chaining. Total connected load (watts and amperes) must remain within the upstream fixture’s rated capacity.
Q: Are interconnecting cables included with the fixtures?
A: Most LED troffers ship with short factory-installed pigtails (typically 15–30 cm) or integrated quick-connect interfaces for flush-mount configurations. Extended-length interconnect cables must be sourced separately from the manufacturer or an authorized distributor and must comply with applicable listing standards (e.g., UL 1561, CSA C22.2 No. 210).
Q: May I cut and splice supplied interconnect cables to extend length?
A: No. Altering factory-assembled cables invalidates UL/ETL listing, voids warranty coverage, and introduces uncontrolled impedance, heat concentration, and insulation integrity risks. Only pre-certified, appropriately rated extension cables—installed per NEC Article 400 and manufacturer instructions—may be used.
Q: Is dimming supported for daisy-chained LED troffers?
A: Dimming functionality is available only when two conditions are met: (1) the fixtures are explicitly labeled as 'dimmable' and (2) a compatible, listed dimming control (e.g., 0–10 V, DALI, or phase-cut) is installed and configured per manufacturer guidelines. Non-dimmable units—or mismatched controls—may result in visible flicker, audible buzzing, reduced lumen maintenance, or premature driver failure.
Q: Is continuous operation safe for daisy-chained LED troffers?
A: Yes—LED technology inherently operates at low junction temperatures and is engineered for 24/7 duty cycles. However, sustained operation amplifies the consequences of substandard connections. Loose terminations increase contact resistance, leading to localized heating and accelerated oxidation. Periodic visual and thermal inspection (e.g., infrared scanning during maintenance windows) is advised for critical or continuously operated installations.
